How to Calibrate the Lane-Keeping System on Your Ford

Ford's lane-keeping assist system relies on a camera-equipped rearview mirror that continuously monitors road markings to keep your vehicle centered. When that camera loses its calibration (whether from windshield replacement, suspension work, or a tire change), your lane-keeping system won't function properly. We've put together this technical guide to walk you through how to calibrate Ford lane-keeping systems using diagnostic software or a supervised driving method. While these procedures are straightforward for tech-savvy owners, we'll also explain when professional Ford ADAS calibration at our Union City, GA service center becomes the safer choice.

When Your Ford Lane-Keeping System Needs Calibration

Your Ford lane-keeping system requires recalibration after specific service events that affect camera alignment or vehicle geometry. Calibration becomes necessary after rearview mirror replacement or removal, windshield replacement or removal, tire size changes, suspension repair or alignment work, front airbag deployment, and Lane Departure Warning system programming.

Warning signs show up when calibration drifts out of spec. Your lane-keeping system doesn't engage or appear on the instrument cluster, activates sporadically, or fails to return your vehicle to lane center. Error codes (DTCs) in the IPMA module confirm calibration troubles.

Preparing Your Vehicle for Lane-Keeping Calibration

Pre-calibration checks save time and prevent failed attempts. Make sure your camera-equipped rearview mirror is properly installed and secured with no play or movement. Check for active error codes in the IPMA module using a diagnostic scanner (any DTCs must be cleared first). Verify all tires match manufacturer specifications for size and inflation pressure. Confirm your suspension sits at manufacturer-specified ride height without aftermarket modifications.

Step-by-Step Guide to Calibrating Ford Lane-Keeping

Two primary methods exist for calibrating the lane-keeping system ford uses: diagnostic software calibration or a supervised road test.

FORScan Calibration Procedure

1. Connect FORScan to your vehicle's diagnostic port

2. Navigate to the Service Functions tab (wrench icon)

3. Wait for the module list to fully load

4. Select "IPMA Camera Calibration," "IPMA Static Calibration," or "Windshield Camera Calibration" depending on your model year

5. Click the Play icon to start calibration

6. Follow all on-screen instructions until completion

Professional Scan Tool Procedure

1. Connect your scan tool to the vehicle

2. Navigate to Image Processing Module A (Lane Assist)

3. Select Functional Tests → Special Functions → Lane Departure Warning System Camera Alignment

4. Follow all tool prompts through completion

Driving Calibration Method

If you need to turn on Ford lane-keeping system functionality without diagnostic tools, the supervised driving method completes calibration automatically. Find a straight road with clear, visible lane markings on both sides. Keep speeds above 64 km/h (roughly 40 mph) for about 10 minutes of continuous driving. The system learns camera alignment by analyzing consistent lane positioning. Skip quick lane changes, hard cornering, or roads with faded markings.

Verifying Successful Calibration

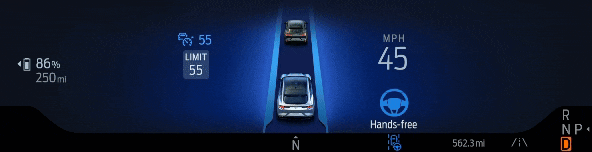

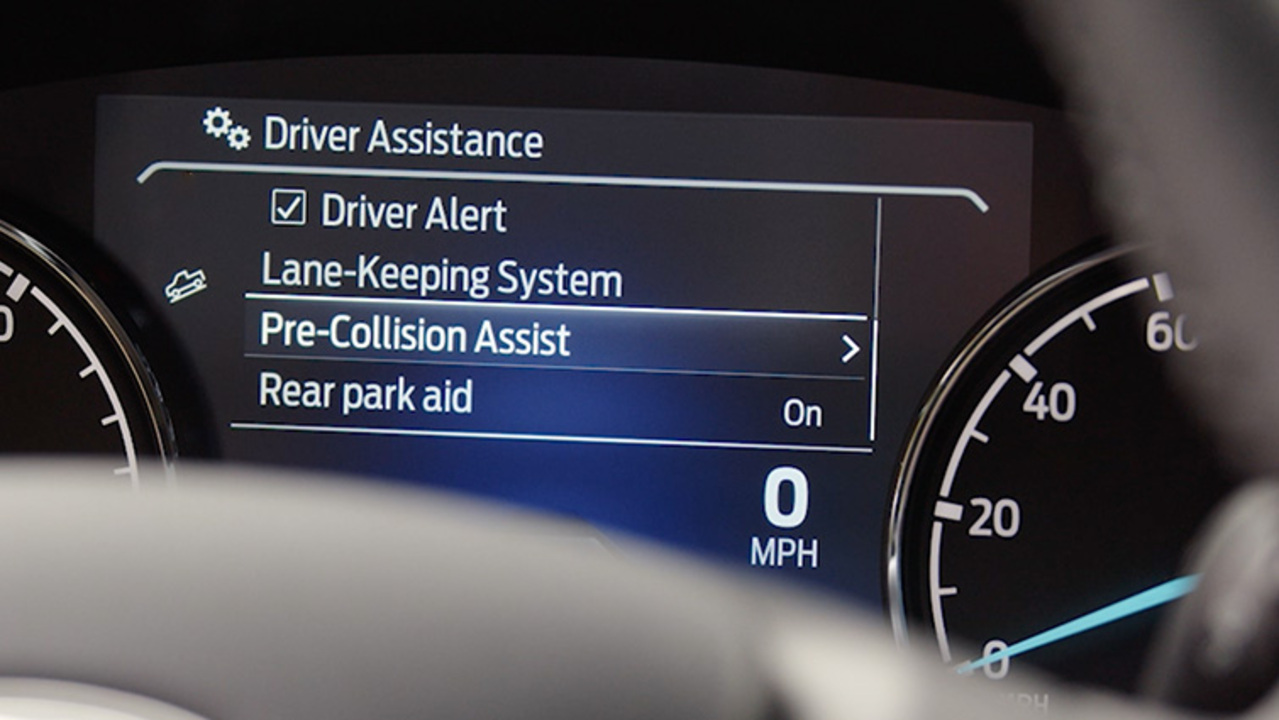

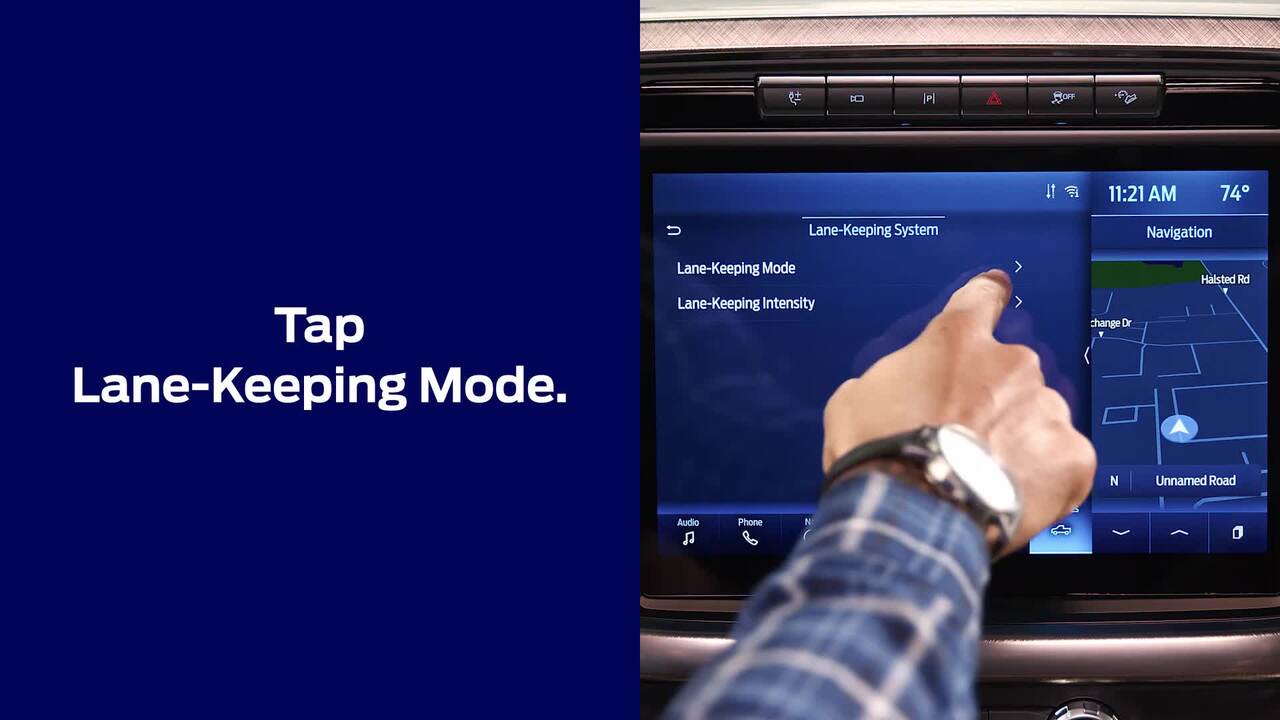

Confirmation indicators tell you when your lane keeping assist Ford system has completed calibration successfully. Lane Departure Warning shows up on your instrument cluster when approaching lane markings. The lane-keeping assist icon activates automatically on marked lanes, and the system engages smoothly when your vehicle drifts toward lane edges.

Run a diagnostic scan to verify no error codes remain in the IPMA module. Your diagnostic tool should display a calibration complete message if using software-based methods.

Troubleshooting Failed Calibration Attempts

Calibration failures usually stem from road conditions, installation issues, or unresolved vehicle problems. Check that road conditions meet minimum requirements: straight roads, clearly visible lane markings on both sides, and sustained speeds above 64 km/h. Make sure your rearview mirror with camera is fully secured. Look for and resolve any DTCs in the IPMA module before attempting recalibration. Verify suspension components and tire pressure exactly match manufacturer specifications.

Try a different road with sharper lane marking contrast if your first attempt fails. Don't make quick lane changes or high-speed cornering during the calibration drive. Persistent failures after addressing these factors indicate potential camera hardware issues requiring professional ADAS service with factory diagnostic equipment.
